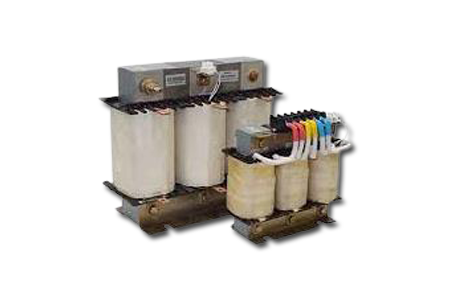

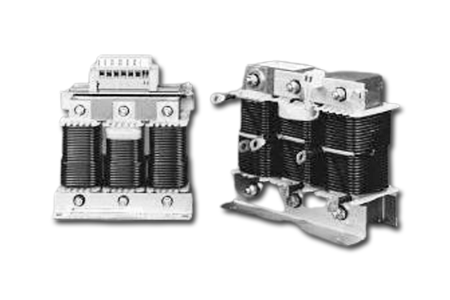

7% Detuned Copper (Cu) / Aluminium Harmonic Filter Reactors
We are the Manufacturer, Supplier, Exporter of 7% Detuned Copper (Cu) / Aluminium Detuned Harmonic Filter Reactors and our setup is situated in Pune, Maharashtra, India.
The increasing use of modern power electronic apparatus (drives, uninterruptible power supplies, etc) produces nonlinear current and thus influences and loads the network with harmonics (line pollution).
The capacitance of the power capacitor forms a resonant circuit in conjunction with the feeding transformer.
Experience shows that the self-resonant frequency of this circuit is typically between 250 and 500 Hz, i.e. in the region of the 5th and 7th harmonics.
- Overloading of capacitors
- Overloading of transformers and transmission equipment
- Interference with metering and control systems, computers and electrical gear
- Resonance elevation, i.e. amplification of harmonics
- Voltage distortion
These resonance phenomena can be avoided by connecting capacitors in series with filter reactors in the PFC system. These so called “detuned” PFC systems are scaled in a way that the self-resonant frequency is below the lowest line harmonic and the detuned PFC system is purely inductive as seen by harmonics above this frequency. For the base line frequency (50 or 60 Hz usually), the detuned system on the other hand acts purely capacitive, thus correcting the reactive power.
- Copper and Aluminium wound reactors
- Very low operating losses - 3 to 5 W / kVAr
- High linearity - 1.8 times the rated current
- Low noise
- Auto-thermal cutoff
